Dry Type Cast Resin Distribution Transformer

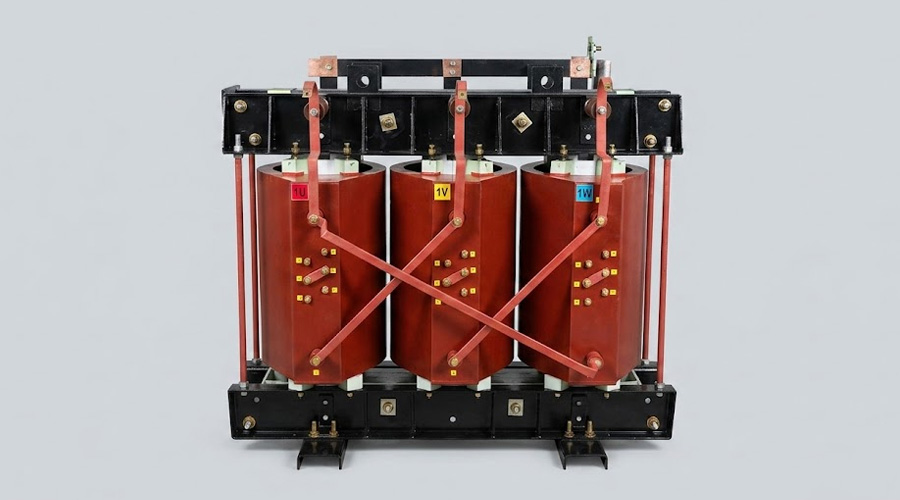

Cast Resin Dry Type Distribution Transformer

Expert Engineers offers high-performance Cast Resin Dry Type Distribution Transformers designed for safe, reliable, and efficient electrical power distribution across industrial, commercial, infrastructure, and critical power applications. Unlike conventional oil-filled transformers, cast resin transformers use solid epoxy resin insulation around the windings and do not require insulating oil, making them a suitable choice where fire safety, low maintenance, and environmental protection are important.

Expert Engineers' Cast Resin Dry Type Distribution Transformers are engineered with encapsulated windings that provide strong insulation and protection against moisture, dust, and demanding operating environments. The cast resin construction offers high mechanical strength and helps maintain dependable transformer performance under varying electrical and environmental conditions.

Technical Specification

Type	Dry Type (Cast Resin)
Rating	Up to 3500KVA
Voltage Class	Up to 33kV
Secondary Voltage	11kV/0.433KV/0.415kV/0.400kV
Frequency	50Hz
Cooling Type	AN/AF
Vector Group	As Required
Winding Material	Copper / Aluminium
Tap Range	Off Circuit or On-Load Tap Changers for HV/LV Variation As Per Customer's Specification
Impedance	In Line With Applicable Standards/Customer's Specification
Applicable Standard	IS, IEC, IEEE Etc.

Key Features

Oil-Free Construction: Eliminates the need for insulating oil and associated oil-management requirements.
High Fire Safety: Solid resin insulation provides low-flammability characteristics, making the transformer suitable for safety-critical installations.
Moisture Resistance: Encapsulated windings help protect the insulation system against moisture and environmental contamination.
Low Maintenance: No oil testing, oil filtration, or oil-level maintenance is required under normal operating conditions.
High Mechanical Strength: Cast resin encapsulation provides robust support to the windings against electrical and mechanical stresses.
Compact Installation: Dry-type construction can be advantageous where installation space is limited.
Reliable Power Distribution: Designed for consistent voltage transformation and dependable operation.
Environment-Friendly Design: The absence of insulating oil eliminates the risk of oil leakage and related ground contamination.
Indoor & Suitable Outdoor Applications: Configuration and enclosure can be selected according to the installation environment and project requirements.

Applications

Expert Engineers Cast Resin Dry Type Distribution Transformers can be used for a wide range of electrical distribution applications, including:

Commercial and office buildings
Hospitals and healthcare facilities
Data centers
Manufacturing and industrial plants
Steel and cement industries
Shopping malls and hotels
Airports and metro infrastructure
Power plants and utility installations
Renewable energy projects
Infrastructure and institutional facilities

Expert Engineers is a trusted provider of Cast Resin Dry Type Distribution Transformers designed for safe, reliable, and efficient electrical power distribution. Our dry type transformers are available with ratings up to 3500 KVA and voltage classes up to 33kV, making them suitable for industrial, commercial, infrastructure, healthcare, data center, renewable energy, and other critical power applications. With oil-free cast resin insulation, these transformers offer high fire safety, moisture resistance, low maintenance, high mechanical strength, and reliable performance in demanding operating environments. Based in Ahmedabad, Gujarat, India, Expert Engineers provides quality electrical transformer solutions for customers across India and international markets, with configurations designed according to project and customer requirements.
