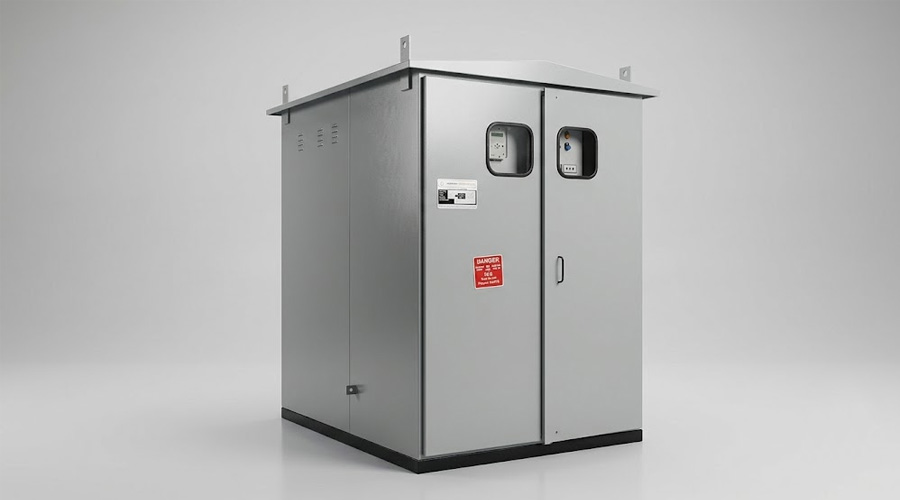

High Tension Metering Cubicle (HTMC) Manufacturer

High Tension Metering Cubicle (HTMC) – Expert Engineers

Expert Engineers manufactures reliable and precision-engineered High Tension Metering Cubicles (HTMC) designed for accurate measurement, monitoring, and safe control of electrical energy in high-voltage power distribution systems. Our HT Metering Cubicles are engineered to provide dependable metering performance, operational safety, and long service life for industrial and commercial electrical installations.

Designed for high-tension applications, our HTMC panels provide an organized and secure arrangement for metering equipment, protection components, and associated electrical connections. Expert Engineers focuses on quality manufacturing, robust construction, and application-specific solutions to meet diverse power distribution requirements.

Technical Specification

Voltage Class	11KV / 22kv / 33kV
Metering Type	HT CT-PT Metering, ABT / TOD Metering
Construction	Sheet Steel Enclosure, CRCA / Powder Coated
CT/PT Type	Resin Cast CT/PT, Oil-Cooled PT (as required)
Accuracy Class	CT: 0.2s / 0.5s, PT: 0.5
Ingress Protection	IP42 / IP54
Busbar Material	Copper / Aluminium
Metering Components	CT, PT, Energy Meter, MFM, Fuses, Terminals
Interlocking	Mechanical & Electrical Interlocking
Safety Features	Arc-proof Construction, Lockable Doors
Standards	IS 2705, IS 3156, IEC Standards
Application	Utilities, Industries, Commercial, DISCOM Connections

Key Features HTMC

Robust and durable enclosure construction
Accurate and reliable electrical metering
Suitable for high-voltage applications
Safe and organized component arrangement
High-quality electrical components
Easy access for inspection and maintenance
Application-specific design and configuration
Reliable performance under demanding operating conditions
Neat and professional panel construction
Designed with operational safety in mind

Applications of HTMC

Expert Engineers HTMC can be used across various power-intensive applications, including:

Manufacturing and industrial plants
Commercial buildings and complexes
Power distribution systems
Infrastructure projects
Renewable energy installations
Process industries
Utility and electrical substations
Large commercial and institutional facilities

Expert Engineers is a trusted manufacturer and supplier of High Tension Metering Cubicles (HTMC) designed for accurate electrical energy measurement, monitoring and safe control in high-voltage power distribution systems. Our DISCOM-approved HT Metering Cubicles are suitable for 11kV, 22kV and 33kV applications and can be configured with HT CT-PT metering, ABT/TOD metering and high-quality metering components. Manufactured with robust sheet-steel construction, reliable electrical components, mechanical and electrical interlocking, and safety-focused design, our HTMC panels are suitable for industrial plants, commercial facilities, utility connections, substations, infrastructure projects and renewable energy installations. Based in Ahmedabad, Gujarat, Expert Engineers provides application-specific HTMC solutions and electrical switchgear systems focused on reliable performance, accurate metering and long service life. we are also manufacturer, exporter and supplier of siemens HTMC Panel and siemens High Tension Metering Cubicles Panel in ahmedabad, gujarat, india.
